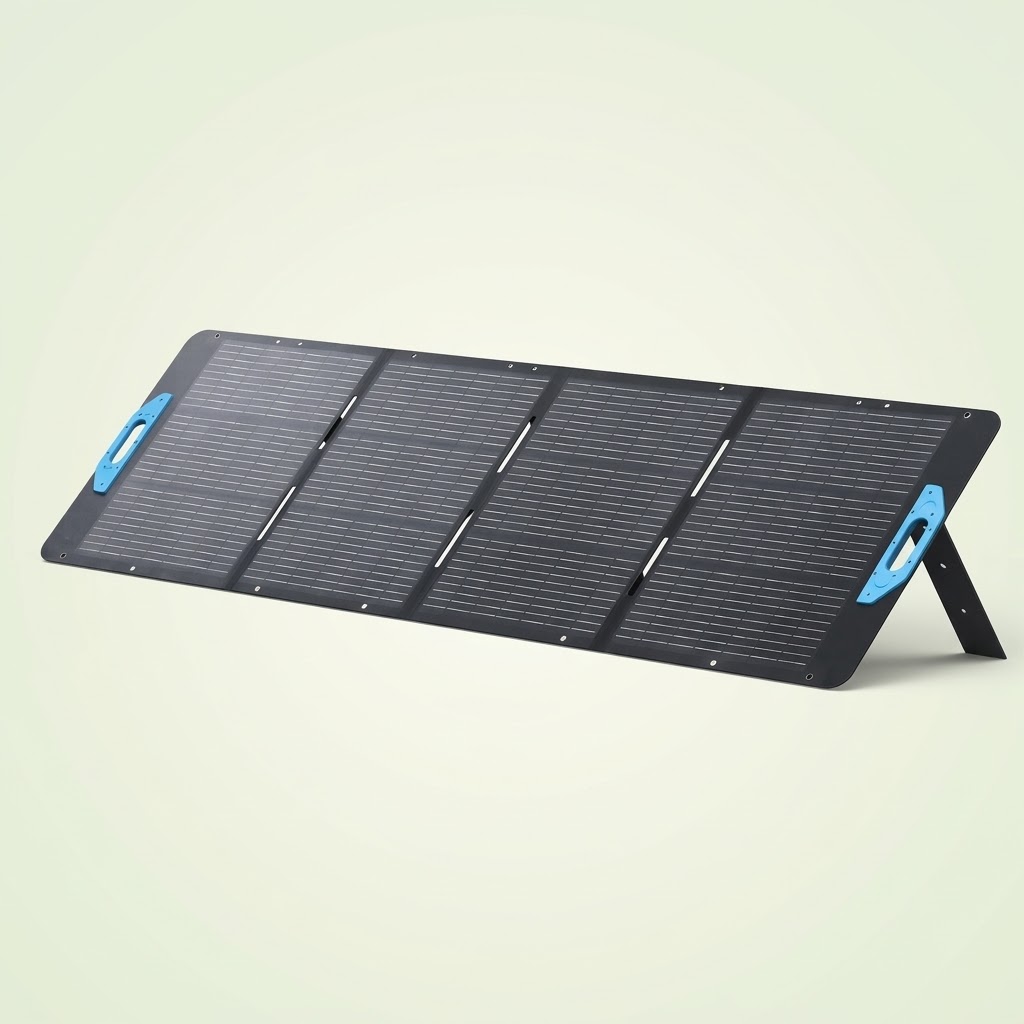

Anker SOLIX PS200 Portable Solar Panel
Solar savings: 2 panels — 10%; 3 panels — 13%; 4 panels — 15%; 5 panels — 18%. Maximum 5 panels per purchase; mix models. Panels inside kits do not count. Offers do not stack.
Based on 1 separately purchased panel after adding this selection. Final total is confirmed in your bag.
Overview & Key Strengths
Why this solar panel
The Anker SOLIX PS200 Portable Solar Panel (A2432) is a 200W high-voltage (48V Vmp / 57.6V Voc) 4-fold monocrystalline panel engineered to unlock the high-speed 32–60V MPPT charging mode on Anker SOLIX C800, C1000, F1500, F2000, and F3800 power stations.
With 23% cell efficiency, a 4-angle adjustable kickstand (30°/40°/50°/80°), and an IP67 weatherproof ETFE finish, up to three PS200 panels can be connected in parallel to feed 600W into a SOLIX C1000.
- 4 sections, 200W / 48V / 4.16A.
- 23% efficiency.
- IP67.
- ~15% lighter than the old Anker 531.
- 4 tilt angles.
- MC4–XT60 0.5m + 2× MC4 3m cables.
- For C800X / C1000 Gen2 / F2000.
Spec sheet
Full specs
- Brand
- Anker
- Model / MPN
- A24361A1
- UPC / GTIN
- 194644169626
- Type
- Folding fabric
- Rated Power
- 200 W
- Connector
- MC4 + XT60
- Weight
- 17.9 lb / 8.1 kg
- Folded / Panel Size
- 24.6 × 21.9 × 1.9 in / 62.5 × 55.6 × 4.8 cm (folded)
- Cell Chemistry
- Monocrystalline Silicon (ETFE)
- Cell Efficiency
- 23%
- Open Circuit Voltage (Voc)
- 57.6 V
- Max Operating Voltage (Vmp)
- 48.0 V
- Short Circuit Current (Isc)
- 4.46 A
- Max Operating Current (Imp)
- 4.17 A
- Unfolded Dimensions
- 83.9 × 23.7 × 0.8 in (213.0 × 60.2 × 2.0 cm)
- Weather Resistance
- IP67 Waterproof
- Compatible Stations
- Anker SOLIX C800, C1000, C1000 Gen 2, F1500, F2000, F2600, F3800
Estimated full-sun charge time
- Small station (300 Wh)
- ~2.5 h
- Mid station (1,000 Wh)
- ~8.5 h
- Large station (2,000 Wh)
- ~17 h
0–100% estimate for one panel in strong, direct sun with good angle. Clouds, haze, shade, and the station's own solar-input limit will slow this down in practice.
In action
Reference setups & field deployment
Anker SOLIX PS200 charging SOLIX F2000
48V Vmp high-voltage output unlocks fast MPPT charging on mid-to-large Anker SOLIX stations.
23% monocrystalline cell efficiency
Four-angle kickstand system (30° / 40° / 50° / 80°) keeps the array perpendicular to the sun.
Folded briefcase profile with ergonomic handle
Folds to 21.9 × 23.9 × 1.9 in for clean vehicle storage.
Highlights
Why it's worth it
- High-voltage 48V Vmp / 57.6V Voc output unlocks full-speed MPPT charging on 60V SOLIX stations
- 23% high-efficiency monocrystalline cells laminated in scratch-resistant ETFE
- 4-position kickstand (30°, 40°, 50°, 80°) maximizes solar absorption throughout the day
- IP67 waterproof protection for reliable off-grid and RV deployment
In the box
What's included
- Anker SOLIX PS200 Portable Solar Panel (200W)
- 2 × 3 m MC4 Solar Charging Cables
- 0.5 m MC4 to XT60 Solar Cable
- Safety Manual & Warranty Card
