Anker · Folding fabric

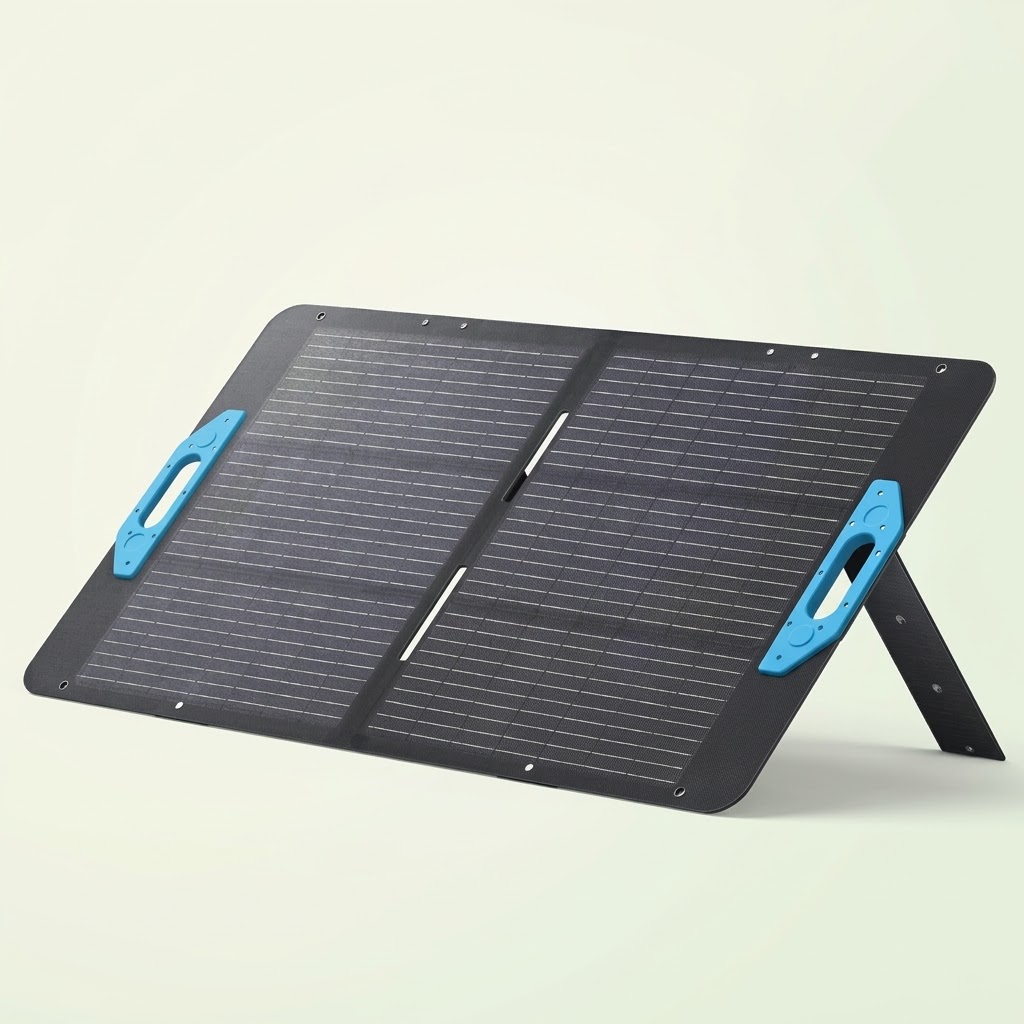

Anker SOLIX PS100 Compact Portable Solar Panel
Solar savings: 2 panels — 10%; 3 panels — 13%; 4 panels — 15%; 5 panels — 18%. Maximum 5 panels per purchase; mix models. Panels inside kits do not count. Offers do not stack.
Based on 1 separately purchased panel after adding this selection. Final total is confirmed in your bag.
Overview & Key Strengths
Why this solar panel
The Anker SOLIX PS100 Compact Portable Solar Panel (A24311A1) packs 100W of monocrystalline solar output into an A3-sized folded package weighing only 7.7 lb (3.5 kg) — 26% lighter and 35% smaller when folded than traditional 100W panels.
Designed for Anker SOLIX C300, C800, C1000, and F-series stations, it features 23% cell efficiency, IP67 weather protection, and an adjustable 30°/40°/50°/80° kickstand.
- Lightweight 100W (~25% lighter than the early PS100).
- Up to 23% efficiency.
- 4 tilt angles.
- IP67.
- MC4–XT60 and XT60–DC7909 cables.
- Works with C300/C800/C1000/F-series.
Spec sheet
Full specs
- Brand
- Anker
- Type
- Folding fabric
- Rated Power
- 100 W
- Connector
- MC4 + XT60 + DC7909
- Weight
- 7.7 lb / 3.5 kg
- Folded / Panel Size
- 21.3 × 14.4 × 1.3 in / 54.1 × 36.6 × 3.3 cm (folded)
- Cell Chemistry
- Monocrystalline Silicon
- Cell Efficiency
- 23%
- Open Circuit Voltage (Voc)
- 20.2 V
- Max Operating Voltage (Vmp)
- 16.8 V
- Short Circuit Current (Isc)
- 6.51 A
- Max Operating Current (Imp)
- 5.95 A
- Unfolded Dimensions
- 28.1 × 46.6 × 0.9 in (71.3 × 118.4 × 2.3 cm)
- Weather Resistance
- IP67 Waterproof
- Compatible Stations
- Anker SOLIX C300, C800, C1000, C1000 Gen 2, F1200, F1500, F2000
Estimated full-sun charge time
- Small station (300 Wh)
- ~5 h
- Mid station (1,000 Wh)
- ~17 h
0–100% estimate for one panel in strong, direct sun with good angle. Clouds, haze, shade, and the station's own solar-input limit will slow this down in practice.
In action
Reference setups & field deployment
Anker SOLIX PS100 Compact charging a SOLIX C1000 in camp
Multi-fold compact design sets up at four precision tilt angles to capture maximum sun.
Compact A3-fold monocrystalline array
Weighs just 7.7 lb (3.5 kg) and stows easily alongside compact SOLIX stations.
Folded A3 briefcase profile with blue ergonomic handle
35% smaller when folded than traditional 100W panels for effortless trunk packing.
Highlights
Why it's worth it
- Ultra-compact multi-fold design weighs only 7.7 lb (3.5 kg) and folds to 14.0 × 10.9 × 2.6 in
- 23% high-efficiency monocrystalline cells with 4-angle (30°/40°/50°/80°) kickstand
- IP67 waterproof and dustproof rating withstands splashes and sudden rain
- Includes MC4-to-XT60 cable compatible with all XT60-equipped Anker SOLIX power stations
In the box
What's included
- Anker SOLIX PS100 Compact Portable Solar Panel (100W)
- MC4 Solar Charging Cable
- MC4 to XT60 Adapter Cable
- Safety Manual & Warranty Card
