EcoFlow · Folding bifacial (lightweight)

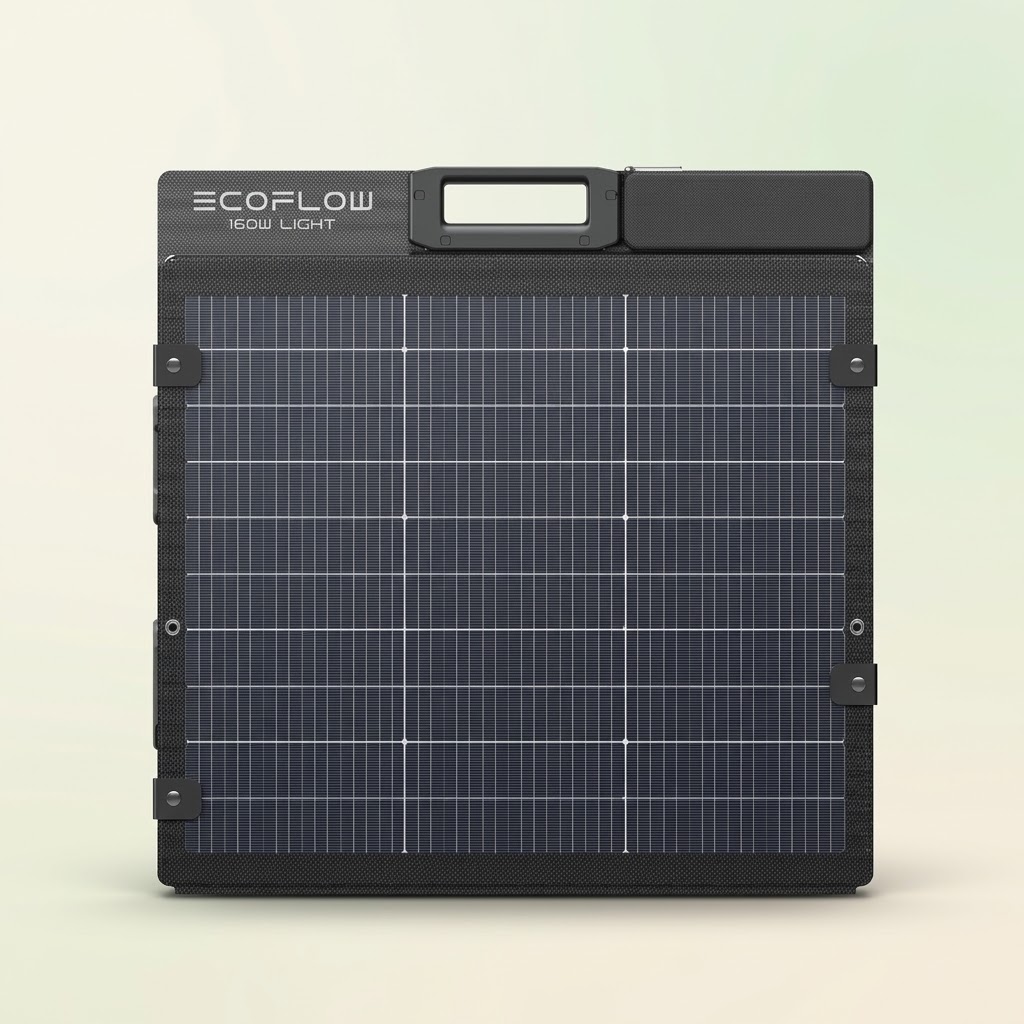

EcoFlow 160W Lightweight Portable Solar Panel
Solar savings: 2 panels — 10%; 3 panels — 13%; 4 panels — 15%; 5 panels — 18%. Maximum 5 panels per purchase; mix models. Panels inside kits do not count. Offers do not stack.
Based on 1 separately purchased panel after adding this selection. Final total is confirmed in your bag.
Overview & Key Strengths
Why this solar panel
The EcoFlow 160W NextGen Portable Solar Panel (EF-Fold-P160-04) upgrades EcoFlow's 160W class with N-Type TOPCon monocrystalline silicon cells achieving up to 25% conversion efficiency and an integrated rear kickstand + visual solar angle guide.
Because the kickstand is built directly into the back of the panel rather than requiring a separate bulky case, setup takes seconds and total carry weight drops to 12.3 lb (5.6 kg).
- NextGen lightweight bifacial.
- N-Type TOPCon, 25% efficiency.
- STC 160W / up to 177W BNPI.
- IP68.
- Built-in 30–60° kickstand and XT60 cable.
- 1.3–3kg lighter than classic 160W.
Spec sheet
Full specs
- Brand
- EcoFlow
- Model / MPN
- EF-FOLD-160-LW
- Type
- Folding bifacial (lightweight)
- Rated Power
- 160 W
- Connector
- XT60 (integrated cable)
- Weight
- 8.4 lb / 3.8 kg
- Folded / Panel Size
- 21.9 × 20.7 × 1.0 in / 55.6 × 52.6 × 2.5 cm (folded)
- Cell Chemistry
- N-Type TOPCon Monocrystalline Silicon
- Cell Efficiency
- Up to 25%
- Open Circuit Voltage (Voc)
- 21.3 V
- Max Operating Voltage (Vmp)
- 18.6 V
- Short Circuit Current (Isc)
- 9.1 A
- Max Operating Current (Imp)
- 8.6 A
- Unfolded Dimensions
- 63.1 × 23.6 × 1.0 in (160.4 × 60.0 × 2.5 cm)
- Weather Resistance
- IP68 Waterproof & Dustproof
- Compatible Stations
- EcoFlow RIVER 2 Pro, RIVER 3 Plus, DELTA 2, DELTA 3, DELTA 2 Max
Estimated full-sun charge time
- Small station (300 Wh)
- ~3 h
- Mid station (1,000 Wh)
- ~10 h
- Large station (2,000 Wh)
- ~21 h
0–100% estimate for one panel in strong, direct sun with good angle. Clouds, haze, shade, and the station's own solar-input limit will slow this down in practice.
In action
Reference setups & field deployment
EcoFlow NextGen 160W Solar Panel deployed in the field
Integrated rear kickstand and built-in sun angle guide keep the TOPCon array locked onto peak sun.
30–60° adjustable rear kickstand & angle guide
Built-in rear support adjusts quickly without needing a separate heavy carry case.
Lightweight 4-fold carry profile
Folds flat with integrated handle and XT60i solar charging cable.
Highlights
Why it's worth it
- Up to 25% conversion efficiency with NextGen N-Type TOPCon monocrystalline cells
- Built-in optical solar angle indicator and integrated 30–60° adjustable kickstand
- Includes Solar-to-XT60i charging cable for full-current recognition on EcoFlow stations
- IP68 waterproof and dustproof ETFE lamination weighing just 12.3 lb (5.6 kg)
In the box
What's included
- EcoFlow 160W NextGen Portable Solar Panel
- Solar to XT60i Charging Cable (2.5 m)
- Protective Storage Bag
- Quick Start Guide & Warranty Card
